Alpro Infra Red Exit Button

The Alpro PB86 infrared proximity switch is designed to be used in conjunction with full range of access control products. This infrared proximity switch offers contactless features offering sterile and hygienic operation.

• The simple swipe of the hand operates the switch, ensuring no contact is required. A feature especially important with the onset of MRSA and other infectious bacteria currently prevalent in hospitals and other communal areas.

Functions

• Adjustable relay trigger from 1 to 9 seconds
• Easy indication of operation status
• Offers one touch point to operate when infrared is abnormal
• Proximity distance is adjustable from 15-27cms
• Suitable for indoor use only

Specifications

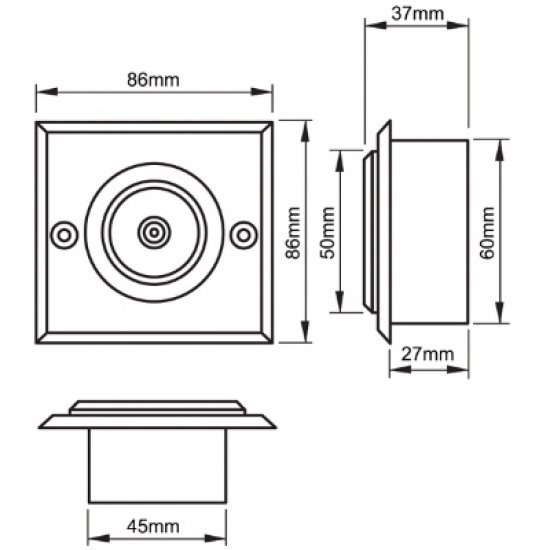

• Dimensions - 86 (L) x 86 (W) x 37 (H) mm
• Contact Rating - 0.5A 125vAC / 2A 30vDC / 0.3A 110vDC
• Relay Life: Mechanical - 100,000,000 / Electrical - 500,000
• Operation Temperature: -20°C ~ 55°C
• LED indicator:  Blue - Normal / Green - Active
