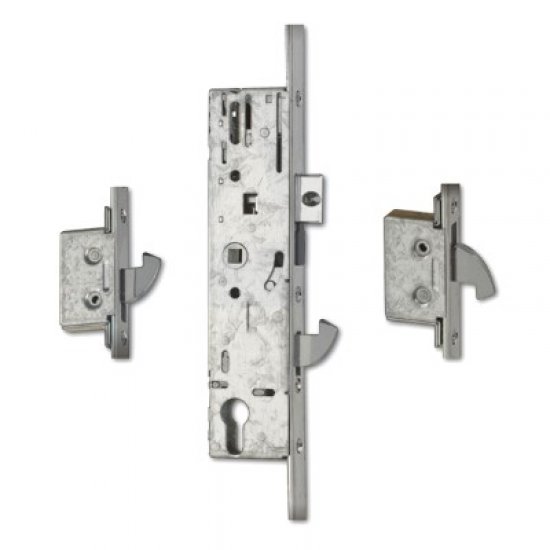

Yale YS170 3 Hookbolt Split Spindle 20mm Radius Faceplate

Yale YS170 is a high quality multipoint locking system that has been designed with security and functionality in mind. This unit features a Euro profile latch & hookbolt centre case, a 20mm radius faceplate, a split spindle and 2 reverse action hookbolts (for superior anti-lift) . For ease of use, the latch can be held or deadlocked by use of a snib. Approved by the Secured By Design scheme and compliant with both the PAS24 and BS6375 standards, the YS170 is a lock that has been built to withstand the elements and comes with 10 year mechanical and security guarantee from Yale as standard.

• PAS24 & Secured By Design approved
• Ideal for timber & composite doors
• Euro profile latch & hookbolt centre case
• Reverse hookbolts for anti-lift
• 10 Year Guarantee
• 20mm Stainless Steel faceplate (radius)

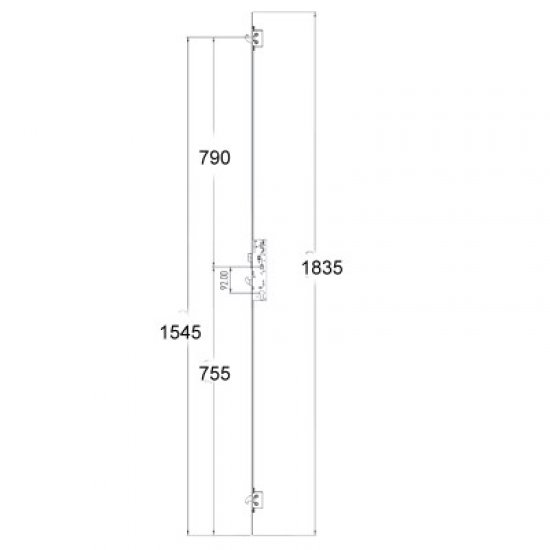

Size:

• Backset: 35 or 45mm
• Centres: 92mm
• Faceplate Width: 20mm Radius
• Length: 1770mm
