KFV Lever Operated Latch Deadbolt Short Version 2 Round Bolt

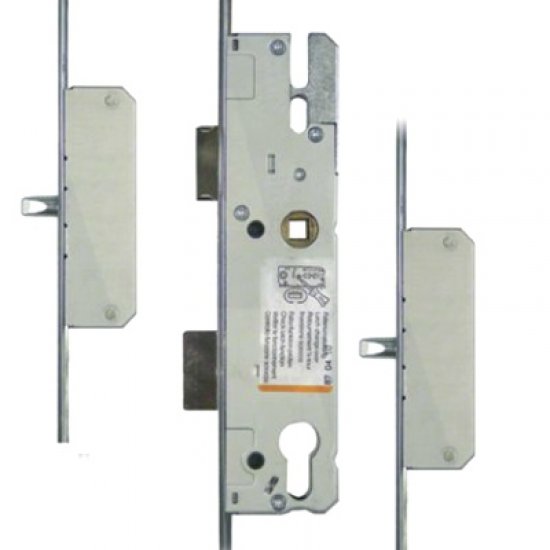

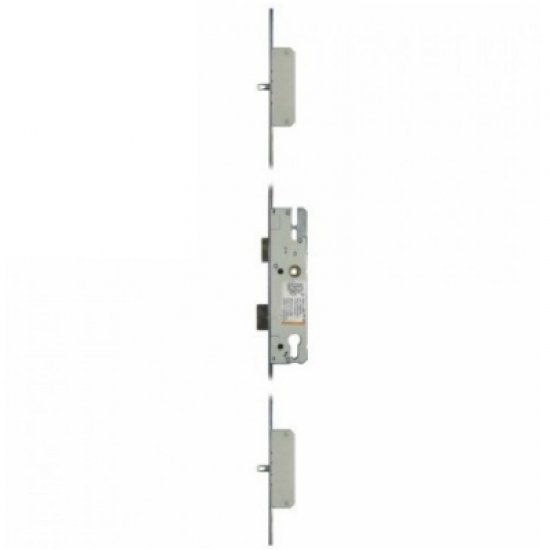

This KFV 7370 is a short version single spindle lever operated latch and deadbolt multipoint with 2 round bolts. The faceplate is 16mm and the gearbox has 92mm centres.

• Euro profile lock case
• 16mm Faceplate
• Euro Profile Lock Case
• Latch & Deadbolt
• Single Spindle

Size:

• 92mm Centres
• Backsets - 35mm
• Case Height: 210mm
• Case Width: 50mm

OPERATION:  Lift Lever

Locking:

• Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock

Unlocking:

• One full turn of the key then push down on lever to release
