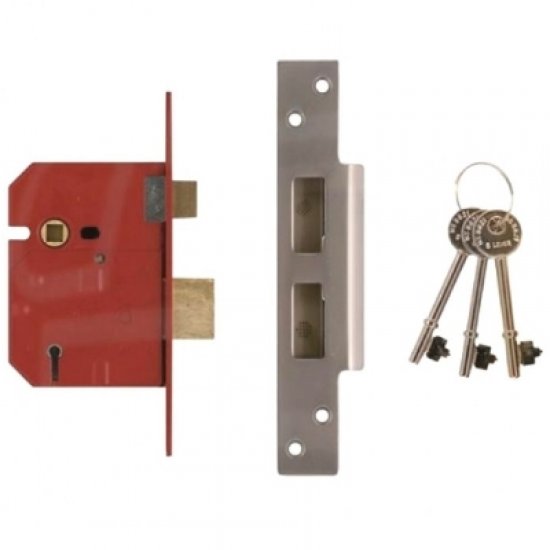

Union 2234E 5 Lever Mortice Sash Lock

For timber doors hinged on the left or right

• Keys are suitable for doors up to 54mm thick

OPERATION:

• Deadbolt locked or unlocked by key from either side
• Latch bolt withdrawn by lever handle from either handle
• Extended 20mm deadbolt for secure positive deadalocking and additional reistance against attack
• 2234E can be keyed alike (on the same key) with 2134E
• Pierced to accept botl through furniture

FEATURES:

• Reversible latch bolt from outside of case
• Anti-pick and anti-saw security features
• Available with square forend and striking plate
• 20mm bolt throw

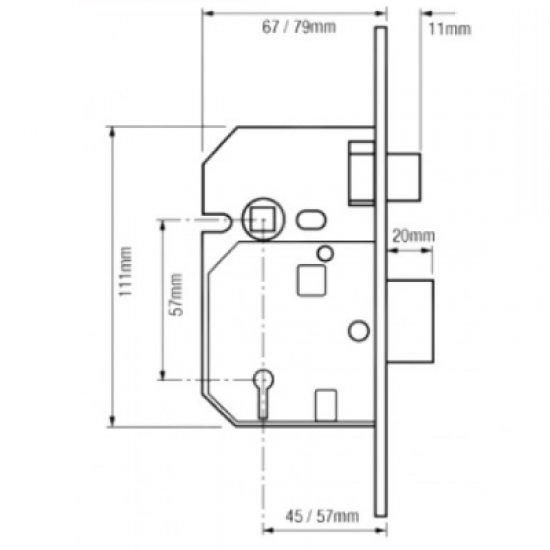

SPECIFICATION:

• Reference: 2234E (BS 20mm extended throw)
• Case Size: 67mm (2.5") or 80mm (3.0")
• Backset: 45mm or 57.5mm
• Case: Steel, red powder coated
• Forend: Satin Chrome or Polished Brass
• Striking Plate: Finished to match forend
• Deadbolt: Brass, with hardened steel rollers
• Latch Bolt: Brass, reversible
• Follower: Brass, 8mm square
