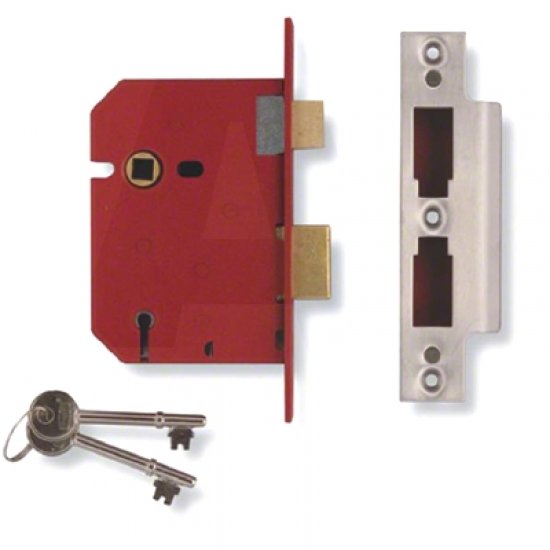

Union 2201 5 Lever Sashlock

Union 2201 5 Lever Sashlock

• For timber doors hinged on the left or right
• Keys are Suitable for Doors up to 54mm Thick

OPERATION:

• Deadbolt locked or unlocked by key from either side
• 2201 can be keyed alike (on the same key) with 2101 & 2401
• Piersed to Accept Bolt Through Furniture

FEATURES:

• Security box striking plate
• Reversible latch bolt from outside of case
• Available with square forend and striking plate

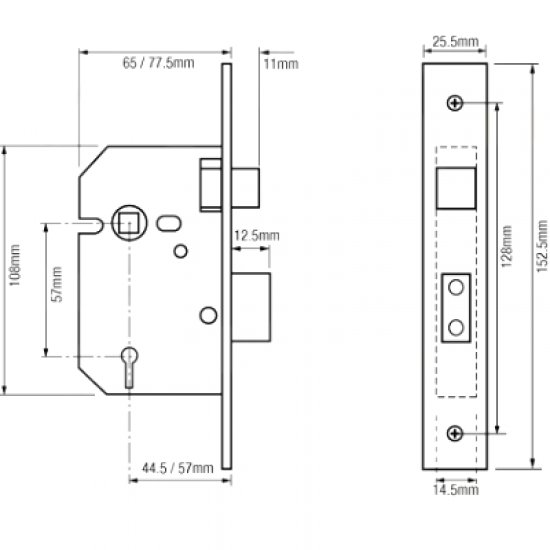

SPECIFICATION:

• Reference: 2201
• Case Size: 65mm (2.5") or 76mm (3.0")
• Backset: 44.5mm or 57mm
• Case: Steel, red powder coated
• Forend: Satin Chrome or Polished Brass
• Striking Plate: Finished to match forend
• Deadbolt: Brass, with hardened steel rollers
• Latch Bolt: Brass, reversible
• Follower: Brass, 8mm square
• Keys: 2 supplied per lock for different keys, 2 keys supplied per set of locks for same keys
