Union 2077 3 Lever Horizontal Mortice Lock

For timber doors hinged on the left or right

• En1634-1 use on 60 min timber fire doors
• Keys are suitable for doors up to 54mm thick

OPERATION:

• Deadbolt locked or unlocked by key from either side
• Latch bolt withdrawb by knob or sprung lever handle from either side
• Two way action, suitable for knobs or sprung lever handles (not suitable for unsprung lever handles)
• Pierced to accept bolt through handles
• 2077 can be keyed alike (on the same key) with 2157, 2177, 2277 & 2477

FEATURES:

• Reversible latch bolt
• Available with square forend and locking plate

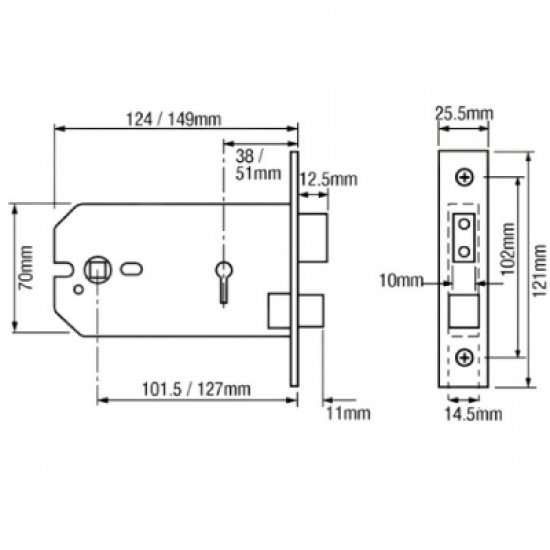

SPECIFICATION:

• Reference: 2077
• Case Size: 124mm (5.0") or 149mm (6.0")
• Backset: 38mm or 51mm
• Case: Steel, silver powder coated

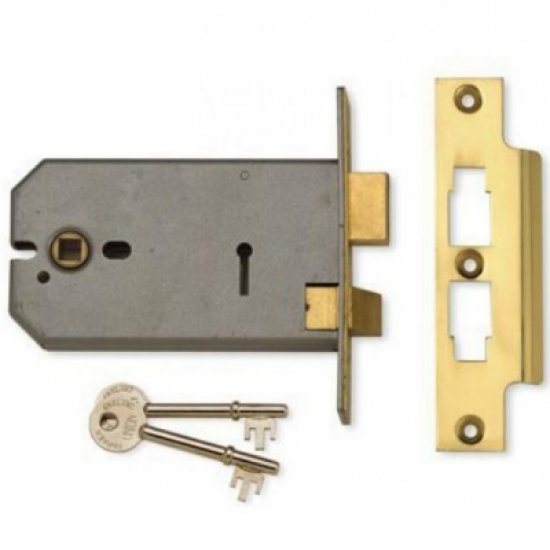

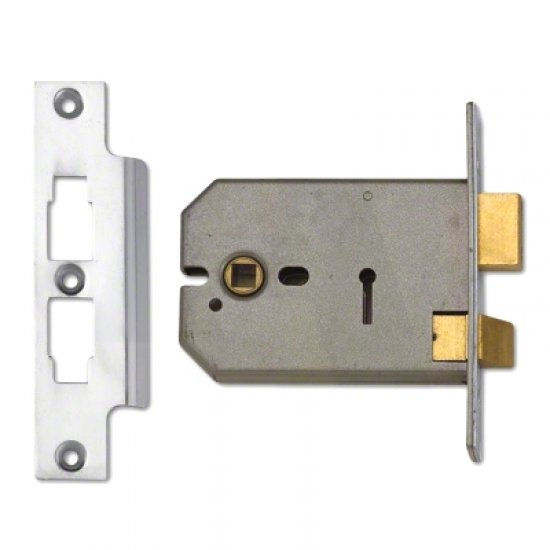

• Forend: Satin Chrome or Polished Brass
• Striking Plate: Finished to match forend
• Deadbolt: Brass, with hardened steel rollers
• Latch Bolt: Brass, easily reversible
• Follower: 8mm square, two way action
