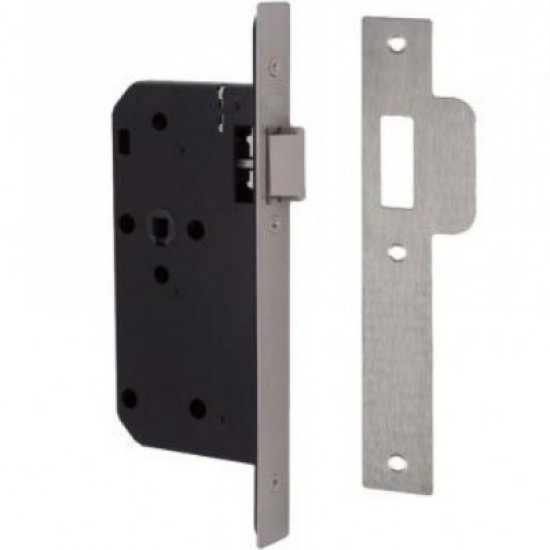

Union 2C23 Mortice Latch

Easily reversible latch bolt

• En1634-1 use on 60 min timber fire doors
• Suitable for unsprung furniture up to max weight of 0.75kg
• 5 year guarantee
• European style casing with 72mm centres which accommodates most euro profile cylinders
• Satisfies recommendations of BS8300 and approved Doc M
• Union 2C23 Mortice Latch
• For timber doors hinged on the left or right

OPERATION:

• Latch bolt withdrawn by handle from either side
• Pierced casing to accept bolt through furniture

FEATURES:

• Modular case range
• Easily reversible stainless steel latch bolt
• Available with square end forend and strike

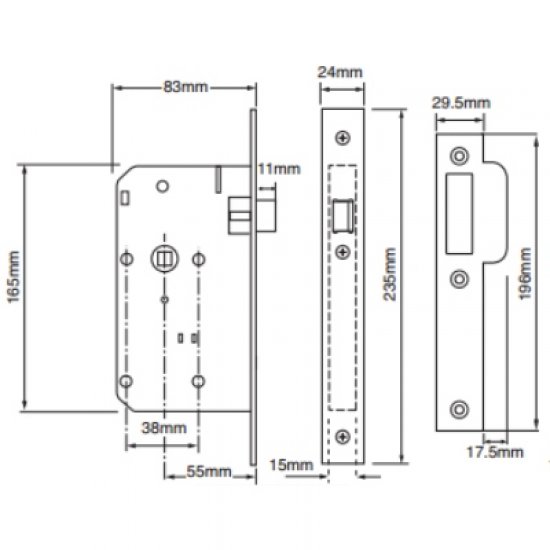

SPECIFICATION:

• Reference: 2C23
• Case Size: 83mm
• Backset: 55mm
• Case: Steel black powder coated
• Forend Finish: Satin Stainless Steel
• Striking Plate Finishes: Matches forend
• Latch Bolt: Stainless Steel Follower: Zinc 8mm Diameter
