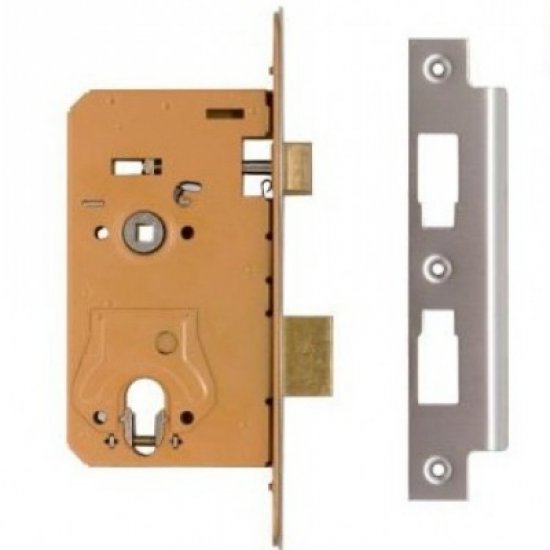

For timber doors hinged on the left or right and requiring cylinder and lever handle operation
OPERATION:
- Suitable for use in heavy duty traffic areas
- Deadbolt locked or unlocked by cylinder key or cylinder turn
- Latch bolt withdrawn by lever handles from either side
- Separate cylinder options - oval or euro profile, key and turn or key and key
FEATURES:
- Pierced casing to accept both oval & euro profile cylinders
- 21mm extended throw deadbolt
- Heavy duty springing for high traffic areas
- Easily reversible latch bolt

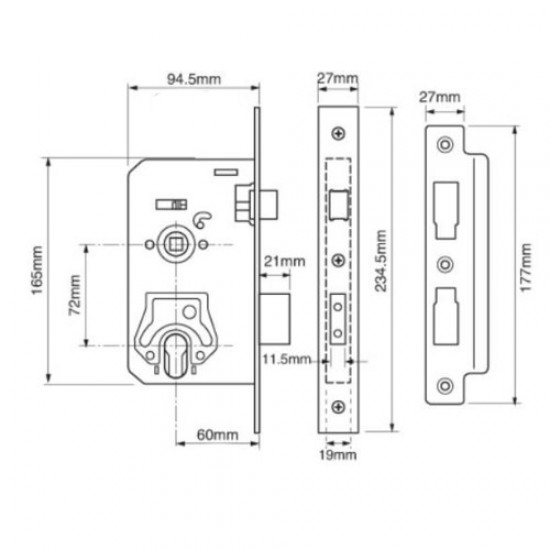

SPECIFICATIONS:
- Reference: L2270
- Case Size: 94.5mm
- Backset: 60mm
- Case: Steel, gold powder coated. Pierced to accept bolt through furniture on 38mm centres. Pierced to accept oval & euro profile cylinders
- Forend: Satin Chrome
- Striking Plate: Matches forend
- Deadbolt: Brass, with hardened steel rollers
- Latch Bolt: Brass, easily reversible from outside of the case
- Follower: Brass, 8mm square. One way action
- Cylinder Type: Oval or Euro profile (supplied separately)
