BKS/Jansen VDS 555.815 lock

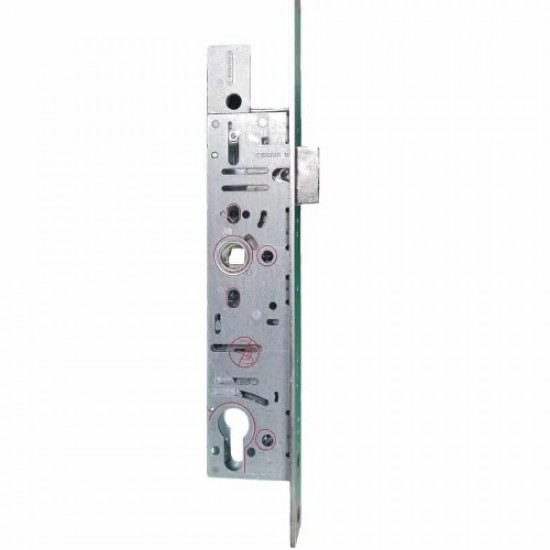

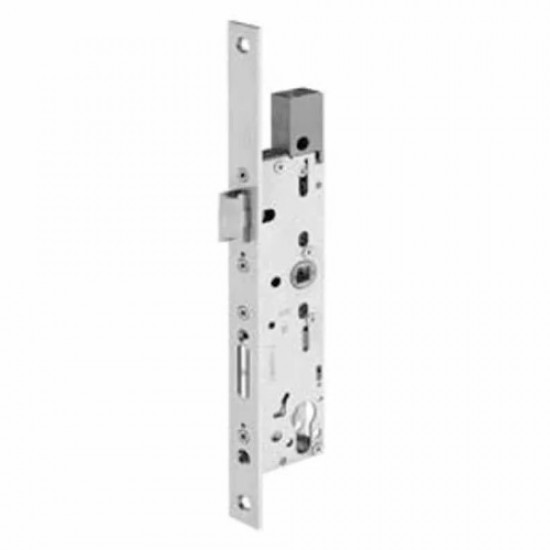

BKS/Jansen latch bolt lock (normal function, single locking for 1-leaf/2-leaf doors) 555.815

• Latch bolt lock normal function prepared for top locking
• Backset 35 mm
• Series: Jansen Economy 50 RS, Economy 60 RS, Janisol 2, Janisol C4
• Press follower: 9 mm
• Cuff type: flat cuff stainless steel
• Cuff width: 28 mm
• Distance between handle size and profile cylinder: 92 mm
• Can be used for DIN left and DIN right opening directions
• Can be used for fire and smoke protection doors

Dimensions:

• Case length: 23.8 cm
• Case width: 4.7 cm
• Crank hole width: 0.9cm

Delivery Approximately 3 - 4 Weeks on above lock - Special order cannot be cancelled or returned
