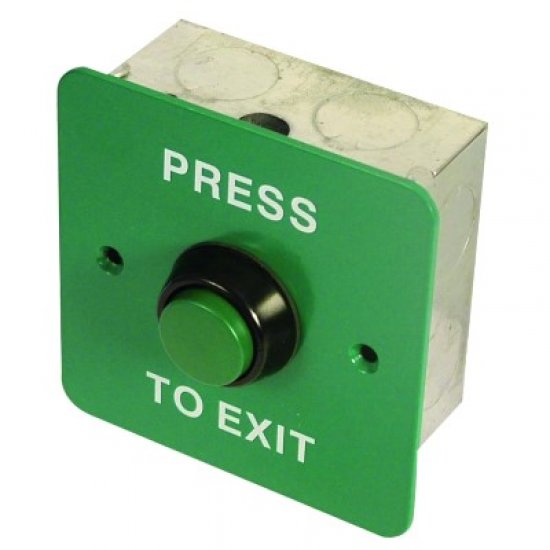

Asec EXB0656 5 Green Exit Button

1 Gang Flush Mounted Green Exit Button is pushed to operate and then springs back into the original position once released

• EXB0656 5 Green Exit Button
• Description: Momentary exit button
• Operating Voltage: 12/24V DC
• Output Contacts: N/O & N/C
• Operation: Momentary Press Actuator
• IP Rating: IP67 front only
• Fitting Style: Flush
• Finish: Stainless Steel

FEATURES:

• For internal/external use
• Sealed contacts
• N/O & N/C contacts
• Flush mounted
• Surface box available (supplied separately)

SIZES:

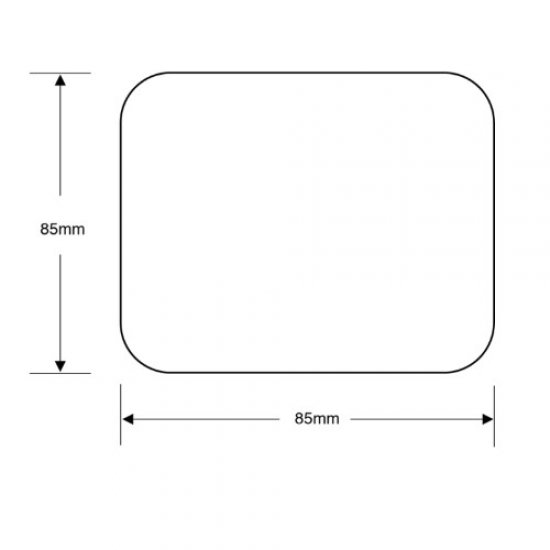

• 85mm Height x 85mm Width x 30mm Depth

VERSION:

• AS8010 - EXB0656-5 Button 1 Gang
