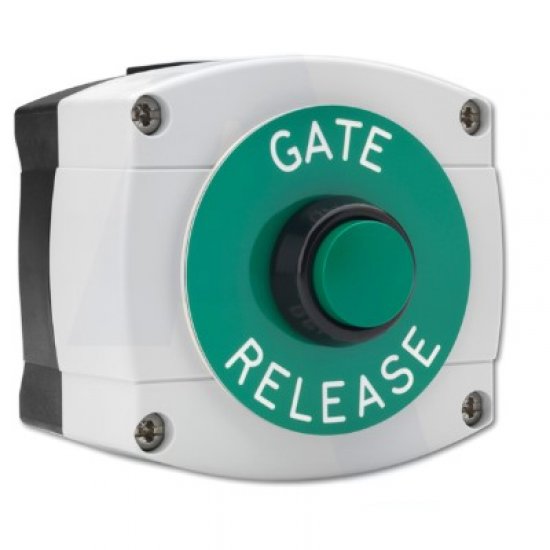

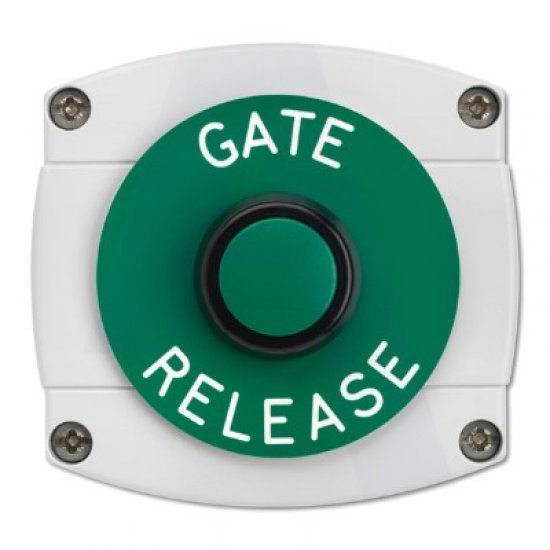

Asec 3E0656-GB-GR Surface Mounted Gate Release Green Dome

Asec green dome high impact surface mounted door release with IP66 ingress protection and white text "Gate Release".

• M16/20 Pre-moulded conduit knockouts
• Surface mounted
• IP66 Ingress protection
• N/O & N/C contacts
• High impact
• RoHS compliant
• IP66 Ingress Protection Rating
• Input Voltage: 12/24V DC
• Outputs: N/O & N/C contacts
• Fitting: Surface
• IP Rating: IP66
• Legend:    "Gate Release"
• Operating Temperature: -40°C to +125°C
• Body Finish: Green
• Body Material: Zinc alloy
• Case Finish: Grey
• Case Material: Robust cross polymer
• Operation: Momentary contact

Size:

• Body Depth: 59mm
• Body Height: 85mm
• Body Width: 89mm
• Depth: 77mm
• Weight: 260g
