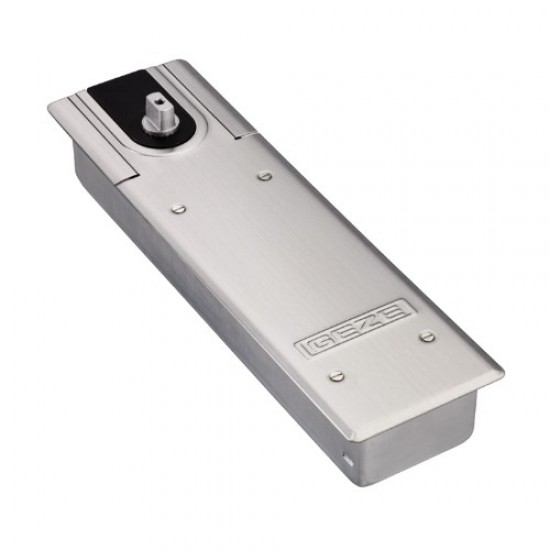

The Geze TS550 NV floor spring is a universal floor spring which has been designed for frequently used and heavy doors that have a maximum leaf width of 1400mm and up to 300kg. With an adjustable closing force of sizes 3 to 6, this door closer also features fully adjustable end stop and closing speed, and all adjustments can be made easily from above. The stepless hold-open mechanism permits an opening angle from 80°-165°. Having been tested to over a million opening and closing cycles, this is a reliably durable product with a guaranteed long life span.
- Fixed opening buffer
- Tested for over a million opening and closing cycles to ensure durability
- Ideal for use with heavy doors in high traffic areas
- All settings are accessible from the top for convenience
- Suitable for heavy single leaf swing and double action doors with maximum leaf weights of up to 300 kg and maximum widths of 1,400mm
- Adjustable end stop, closing speed and hold open
Size:
- Body Depth: 54mm
- Body Height: 54mm
- Body Length: 342mm
- Body Width: 342mm
- Depth: 55.5mm
- Length: 362mm
- Width: 105mm
- Max Door Weight: 300kg
- Max Door Width: 1400mm
- Strength Size: 3 to 6
- Weight: 5kg
