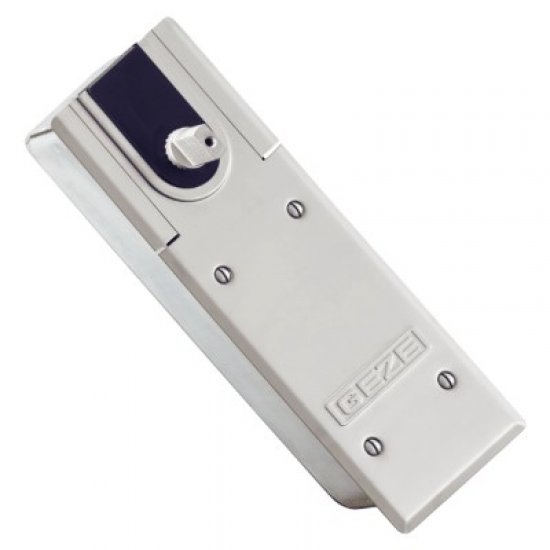

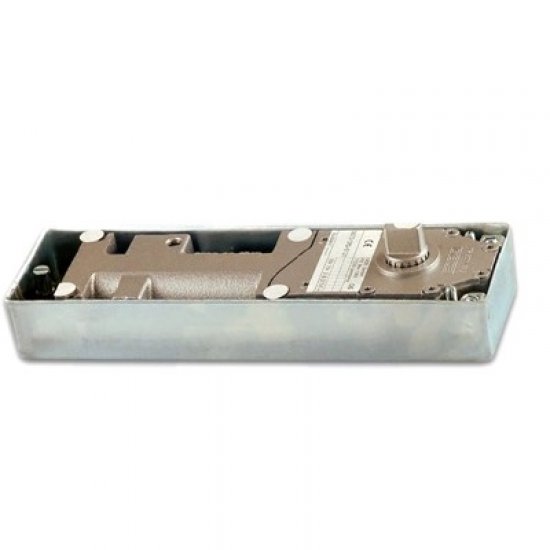

Geze TS500NV Size 1-4 Floor Spring

The Geze TS500 NV floor spring is a compact floor spring which has been designed for smaller swing and double action doors with a maximum leaf width of 1100mm. With an adjustable closing force of sizes 1 to 4, this door closer also features fully adjustable end stop and closing speed, and all adjustments can be made easily from above.

• Can be used with both swing and double action doors
• Fixed opening buffer
• For use on doors with a maximum leaf width of 1100mm
• Adjustable closing force sizes 1 - 4
• Adjustable end stop and closing speed
• Standards: BS EN1154

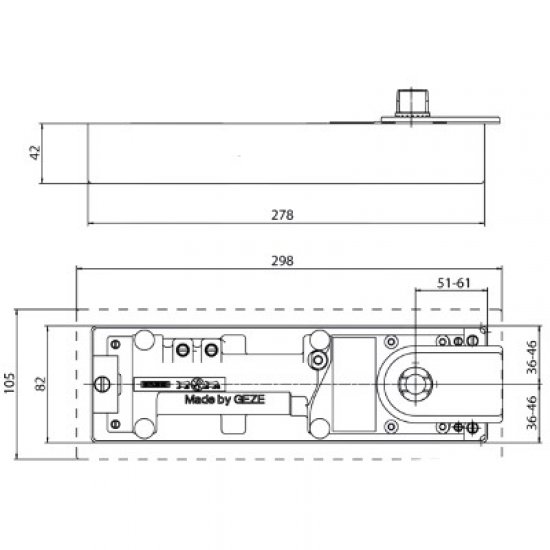

Size:

• Body Depth: 82mm
• Body Width: 278mm
• Depth: 42mm
• Max Door Width: 1000mm
• Strength Size: 1-4
• Weight: 5kg
