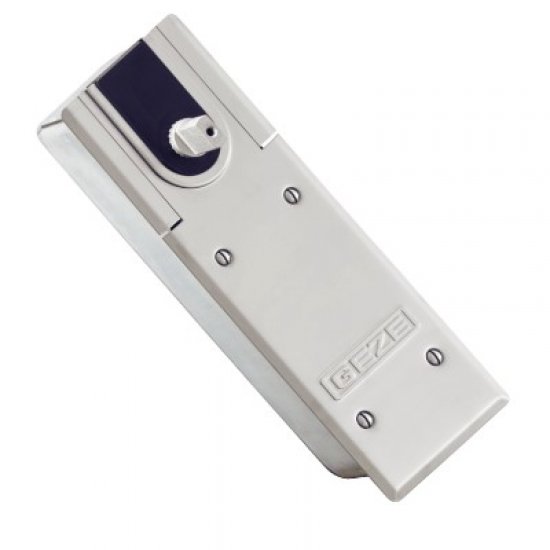

Geze TS500 N EN3 Size 3 Floor Spring

The Geze TS500 N EN3 floor spring is a compact floor spring, which has been designed for smaller swing and double action doors with a maximum leaf width of 950mm. With a size 3 closing force, this door closer also features fully adjustable end stop and closing speed, with the added convenience that all adjustments can be made easily from above.

• Can be used with both swing and double action doors
• Fixed opening buffer
• For use on doors with a maximum leaf width of 950mm
• Fixed closing force size EN 3
• Adjustable end stop and closing speed
• No Hold Open

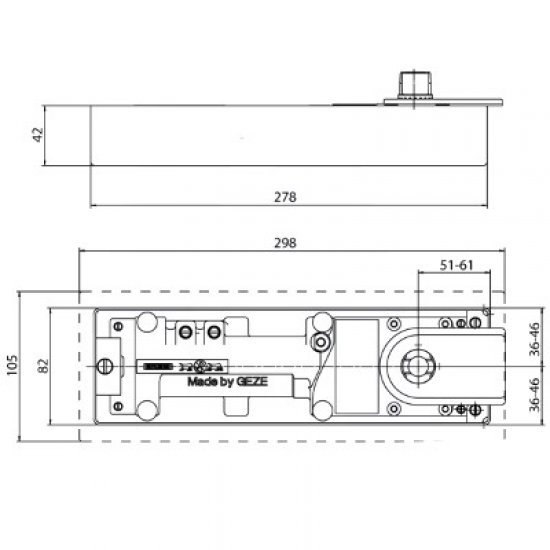

Size:

• Body Depth: 82mm
• Body Width: 298mm
• Depth: 42mm
• Max Door Width: 950mm
• Strength Size: 3
• Weight: 5kg
