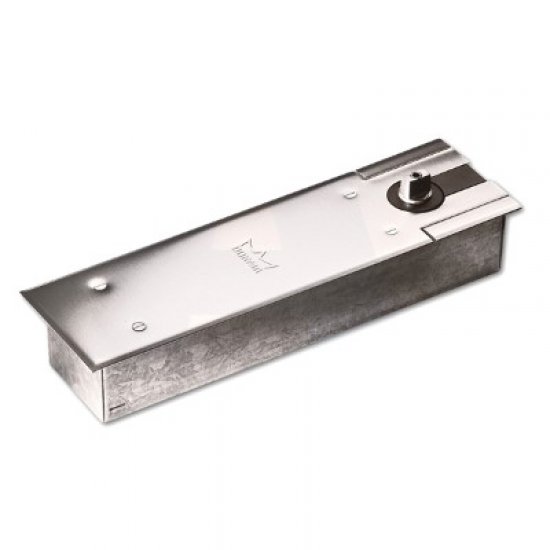

The BTS80F range of concealed door closers from Dorma offers a discreet, highly adaptable door closer that is suitable for use on fire and smoke check doors. This fixed backcheck floor spring is suitable for use on doors up to 300Kg in weight and 1100mm in height. This CE marked and Certifire approved door closer features full hydraulic control of the closing action from 180° and adjustable latching. This unit is suited for use on single action doors only and is supplied with cement box.
- Supplied with cement box
- Spindle and cover plate not included
- Full hydraulic control of the closing action from 180°
- Suitable for all door types
- Adjustable Closing Action
- Adjustable Latch Action
- Backcheck
- Complies To BS EN 1154
- Max Door Weight: 300Kg
- Max Door Width: 1100mm
- Strength Size: 4
- Document Fire Protection: Certifire CF127 Certificate
- Supplied without spindle or cover plate
- Non-Handed
Size:
- Depth: 78mm
- Height: 60mm
- Length: 341mm
- Width: 78mm
- Weight: 7Kg
