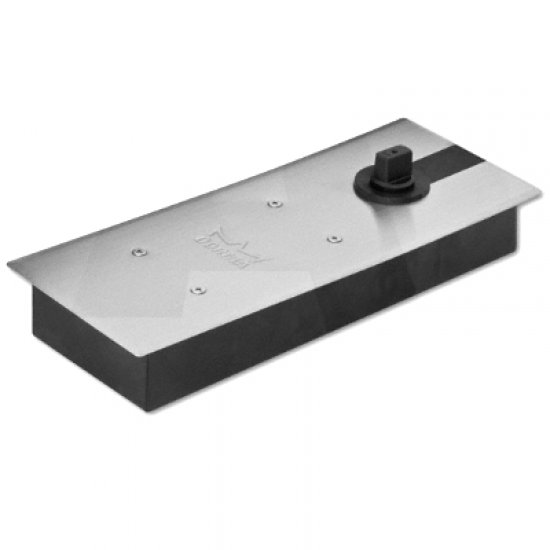

Single action pack with stainless steel top plate
- Dorma BTS80 Floor Spring
- EN 3/4/6
- Max door width: 950mm (EN 3) 1100mm (EN 4) 1400mm (EN 6)
- Max door weight: 300kg
- 2 valve control of closing speed
- Fixed backcheck
- Adjustable sweep speed
- Delayed action
- Hold open hydraulically adjustable
- Successful independent testing to BS EN 1154
- Handed: Reversible
The BTS80 Series of floor-concealed door closers offer adaptability to almost any installation. The closer's compact body permits its use where a larger closer would be prohibitive. Versatility allows installation in thin slab concrete subfloor construction. A wide selection of interchangeable spindles makes the BTS80 suitable for virtually any floor covering or threshold application. Because the BTS80 can control exceptionally heavy single- and double-acting doors, you can incorporate the floor closer into almost any design to meet most materials, size, and weight requirements.
Size:
- Length: 341mm
- Depth: 60mm
- Width: 78mm
- Strength Size: 4
